| Model No. |
DM-06TP-F |
DM-13TP-F |
DM-13TD-F |
DM-04TP-F |
DM-08TP-F |
| Drilling Capacity(steel( 60kg./sq.mm)/cast Iron) |
|
|
Ø13 / Ø15 |
|
|
| Tapping capacity(steel(60kg./sq.mm)/cast Iron) |
M4 / M5 |
M 8 / M 10 |
M 8 / M 10 |
M4 / M6 |
M8 / M10 |
| Minimum size of Drilling - Tapping Operation |
M 2.5 |
M 4 |
M 4 |
M 2 |
M 4 |
| Spindle |

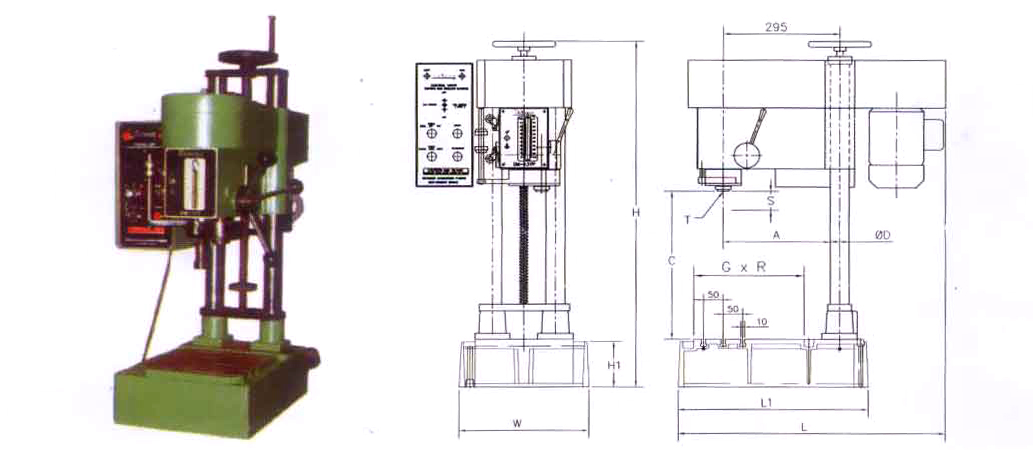

| Spindle Nose Taper (normal) ( T ) |
JT-1(Male) |
MT-1 (Female) |
MT-1 (Female) |
MT-1 (Female) |
MT-1 (Female) |
| Spindle Nose Taper (optional) ( T ) |
|
|
|
|
|
| Spindle Stroke ( S ) |
50 |
100 |
100 |
50 |
65 |
| Spindle Speeds |
4 |
4 |
4 |
4 |
4 |
| Spindle Speed Range - ( I Speed ) |
400-900-1400-2500 |
355-630-1120-2000 |
355-630-1120-2000 |
180-224-400-630 |
355-630-1120-2000 |
|
|
|
1250-3000-4500-8000 |
|
|
| Spindle Speed Range - ( II Speed ) |
|
|
|
|
|
|
|
|
|
|
|
| Spindle Feed |
Lead Screw |
Lead Screw |
Manual |
Lead Screw |
Lead Screw |
| Spindle Axis to column Face ( throat ) ( A ) |
270 |
270 |
270 |
265 |
170 |
| Spindle Axis to column Axis |
295 |
295 |
295 |
190 |
190 |
| Spindle Nose to Base Plate (min./ max) ( C ) |
100 / 345 |
100 / 345 |
125 / 370 |
135 / 325 |
135 / 325 |
| Cloumn Diameter (O.D.) ( D ) |
48 |
48 |
48 |
40 |
40 |
| Clamping Area on Base Plate ( Q x R ) |
250 x 280 |
250 x 280 |
250 x 280 |
320 x 350 |
280 x 370 |
| T Slots on Base Plate (Size / Pitch / Nos.) |
10 / 50 / 3 |
10 / 50 / 3 |
10 / 50 / 3 |
10 / 100 / 2 |
10 / 100 / 2 |
| Motor( 3 Ph ) (KW / HP) |
0.37/ 0.5 |
0.37/ 0.5 |
0.37/ 0.5 |
0.37/ 0.5 |
0.37/ 0.5 |
| Motor RPM |
1000 (Rev.) |
1000 (Rev.) |
1000 (Rev.) |
1000 (Rev.) |
1000 (Rev.) |
| Electric Supply |
415V,3Ph,50Hz |
415V,3Ph,50Hz |
415V,3Ph,50Hz |
415V,3Ph,50Hz |
415V,3Ph,50Hz |
| Control Voltage |
220V,1Ph,50Hz |
220V,1Ph,50Hz |
220V,1Ph,50Hz |
220V,1Ph,50Hz |
220V,1Ph,50Hz |
| Overall size of Base Plate ( W x L1 x H1 ) |
320 x 470 x 125 |
320 x 470 x 125 |
320 x 470 x 125 |
280 x 370x 65 |
280 x 370x 65 |
| Belt Type |
Flat |
V Belt |
V Belt |
Flat |
V Belt |
| Overall size of Machine ( W x L x H ) |
320 x 705 x 895 |
320 x 705 x 895 |
320 x 705 x 895 |
280 x 580 x 620 |
280 x 580 x 620 |
| Machine Weight in Kgs. |
105 |
110 |
110 |
82 |
82 |
