| Model No. | PS-MF-30 | PS-MF-40 |
|---|---|---|
| Unit Mounting | Base | Base |
| Max. Spindle Speeds Range RPM | 500 ~ 3000 | 500 ~ 2000 |
| Spindle Ouyput Power Kw | 1.5 | 2.2 |
| Overall dimension ( L x H x W ) mm | 345x133x150 | 520x135x150 |
| Spindle Nose Bore ØD | ISO-30 | ISO-40 |

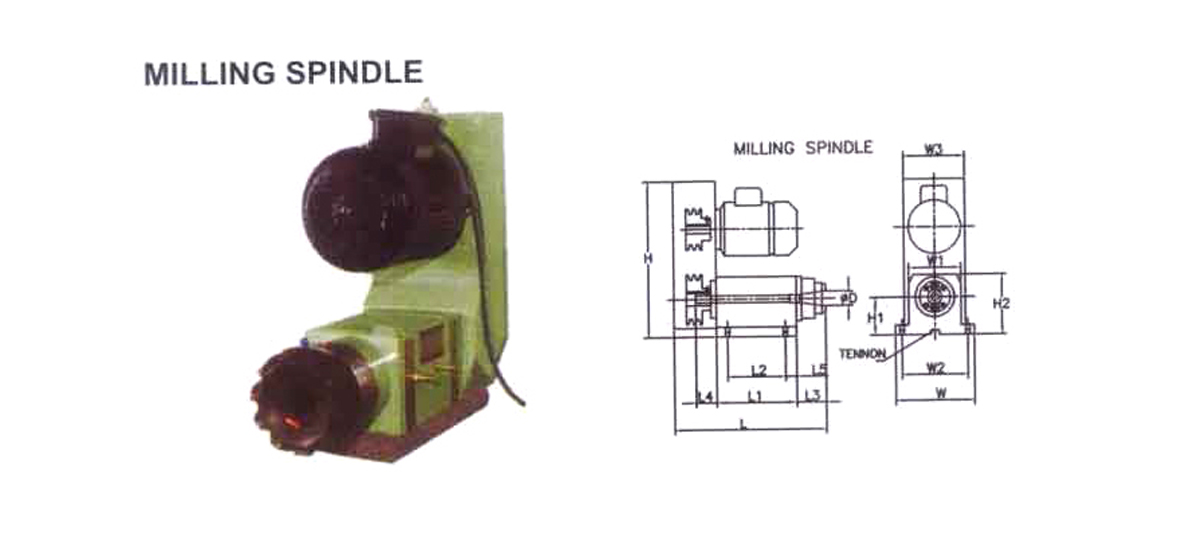

| Unit Mounting Dimension ( L1 x W1 )mm | 350 x 150 | 400 x 200 |
| Mounting Pitch Dimension ( L2 x W2 ) mm | 125 x ( 90x2 ) | 170 x ( 125x2 ) |
| Main Body To Spindle Nose ( L3 ) mm | 56 | 110 |
| Centre Height ( H1 ) mm | 100 | 125 |
| Main Body To Rear Nose ( L4 ) mm | 47 | 55 |
| Main Body Hight ( H2 ) mm | 133 | 135 |
| Main Body Weight ( H2 ) mm | 106 | 110 |
| Weight For Motor Guard ( H2 ) mm | 180 | 220 |
