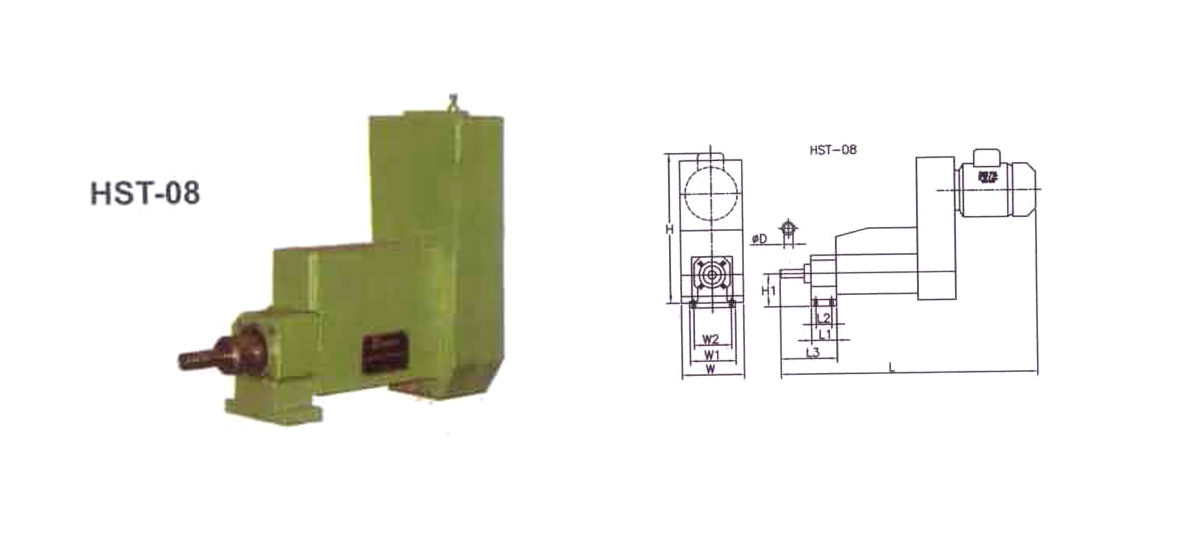

| Model No. | HST-08 | HST-16 |
|---|---|---|
| Tapping capacity (steel (60kg./sq.mm)/cast Iron) | M8 / M12 | M16 / M24 |
| Minimum size of tapping Operation | M2 | ---------- |
| Max.Spindle Stroke mm | 50 | 80 |
| Min. Spindle Stroke mm | 10 | 15 |
| Unit Mounting | Neck | Base |
| Max. Spindle Speeds Range RPM | 300 ~ 1500 | 150 ~ 800 |
| Spindle Ouyput Power Kw | 0.55x1500 R | 1.5 |
| Nett Weight for basic unit with Motor in Kgs.(Approx.) | 50 | 75 |
| Overall dimension ( L x H x W ) mm | 780x490x190 | ---------- |
| Spindle Nose Bore ØD | Ø16 H7 | Ø20 H7 |
| Unit Mounting Dimension ( L1 x W1 )mm | 80 x 140 | ---------- |
| Mounting Pitch Dimension ( L2 x W2 ) mm | 50 x 115 | ---------- |
| Main Body To Spindle Nose ( L3 ) mm | 200 | ---------- |
| Centre Height ( H1 ) mm | 100 | ---------- |
